HAEFELY AG

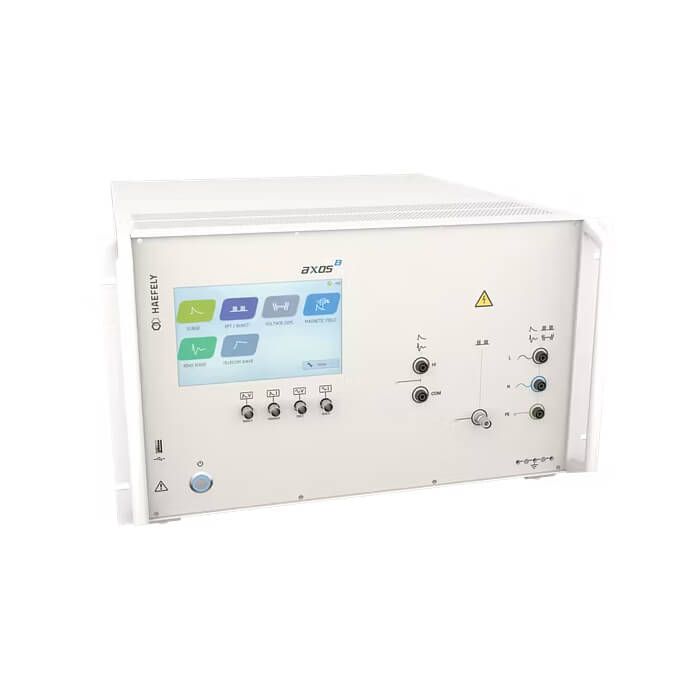

AXOS8 Ring Wave - Compact EMC Test System For Ring Wave Testing
Stand Alone 7 kV Ring Wave Generator
The AXOS 8 - Ring Wave is a stand-alone 7 kV Ring Wave Generator with an integrated single-phase coupling decoupling network (CDN) for EMC testing applications up to 16 A.
The AXOS 8 - Ring Wave can be upgraded to perform 5 kV EFT/Burst, 7 kV Combination Wave (1.2/50 us & 8/20 us), 7 kV Telecom Wave (10/700 us), AC/DC Voltage Dips & Interrupts and Pulsed Magnetic Field tests via software and/or hardware upgrades.
The expandable functionality allows for quick and completely automated testing to the most common IEC, EN, ANSI, IEEE and UL standards.
The AXOS unit can either be operated via the front panel by a large colour graphic interface or remotely from the PC. The easy-to-use menu, together with the availability of predefined test routines for different standards, makes testing easy and reliable, even for less frequent users. Numerous additional functions, such as an external start/stop function, allow easy integration of the test system also in customer-specific test environments.
Key Features
- Easy to operate with manual and automated test modes, software-assisted test preparation, pre-defined test routines and visually aided test setups
- Economic and Efficient: Touch screen guarantees reduction of time and effort - Experience and know-how at a reasonable price
- Safe and reliable operation by using safety interlock, warning lamp and emergency stop functions
- Voltage and current monitoring of surge impulses and EUT power provides valuable feedback to the test engineer
- Automatic generation of a test report including test parameters, test setup and test result
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories | Mains Cable, User Manual, Calibration certificate |
| Dimensions | 19“ / 4U (45 x 18 x 49 cm) |
| Weight | 25 kg |
| Standards |
IEC/EN 61000-4-12 Ring Wave |
| Applications |
|
| Control Power | 85 V - 264 V; 50/60Hz |
| User Test Storage | Unlimited |
| Remote Interface | Ethernet, RJ45 |
| Display | 7“ / 800x480 / 24 bit with touchscreen |
| External Trigger Input | 5 V TTL |
| Trigger Output | 5 V TTL |
| EUT Failed Input | 5 V TTL |
| Warning Lamp Output | 2 x 24 V / 1 A DC |
| USB | For USB memory stick |
| AUX Interface | D-sub 37p for external CDN, external transformer etc… |
| Sync Input | BNC, 10 V – 264 V AC |
| External Start/Stop Input | 5 V TTL, starts / stops predefined test sequence |
| Analogue Output | 0-10 V, for use with external options |
| Safety Circuit | Stops the test when unlocked |
| Ring Wave: Output Voltage | 0.2 - 7.0 kV ± 10% |
| Ring Wave: Voltage Oscilation Frequency | 100 kHz |
| Ring Wave: Rise Time OCV | 0.5 µs ± 30% |
| Ring Wave: Rise Time SCC | 0.2-1.0 µs |
| Ring Wave: Impedance | 12 Ohm, 30 Ohm |
| Ring Wave:Peak Voltage Monitor |
BNC output: 1000:1 |
| Ring Wave: Impulse Trigger | Up to 30 pulses / minute |
| Ring Wave: Polarity | Positive / negative / alternate |
| Ring Wave: Floating Output | Max. 460 V / AC |
| Ring Wave: Phase Sync Array | ± 1° |
| Ring Wave: Damping Rate |
0.4 ≤ peak2/peak1 ≤ 1.1 |
| Ring Wave: Peak Current Monitor |
BNC output: 1 kA/V |
