FA1813

FA1813

Hioki

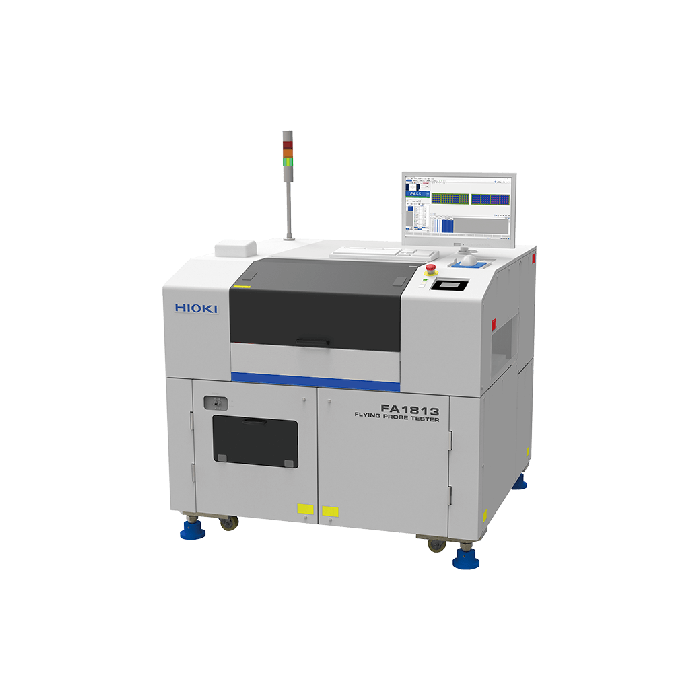

Flying Probe Tester

Flagship model for package board testing

Upper arm board alignment uses a high-resolution camera with twice the pixels as the previous model and a high-magnification lens (with 2× optical zoom) to help achieve accurate probing of the fine-pitch pads found on high-density package boards.

“Probe-down with contact check,” a new function, facilitates optimal probe stroke to minimise impact marks, reducing damage to pads.

Key Features

  • Four-terminal measurement of fine-pitch pads
  • Reduced impact marking when used with the latest probes
  • Defect analysis using Process Analyser
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 200 V, 220 V, 230 V, 240 V AC single-phase (specify at time of order), 50/60 Hz, 5 kVA
Measurement Speed Max. 76 points/ s (X-Y movements of 0.15 mm, 4-arm simultaneous probing, when capacitance measurement)
Number Of Arms 4 (2 each, top and bottom)
Compatible Probes 1172 series, 1072 series, 1073 series
Number Of Test Steps Max. 999,999 steps
Test Parameters And Measurement Ranges

Resistance: 40.00 μΩ to 100.0 MΩ

Constant DC current continuity measurement: 400.0 m Ω to 1.000 k Ω

Constant DC current resistance value measurement: 40.00 μ Ω to 400.0 K Ω

Constant DC voltage resistance value measurement: 4.000 Ω to 40.00 M Ω

Insulation resistance: 1.000 kΩ to 100.0 GΩ

Capacitance: 100.0 fF to 10.00 μF

Leak current measurement: 100.0 μA to 10.00 mA

High voltage resistance: 1.000 kΩ to 100.0 GΩ

Capacitance Insulation resistance: 1.000 kΩ to 10.00 MΩ

Open test: 4.000 Ω to 4.000 MΩ

Short test: 400.0 mΩ to 40.00 kΩ

LSI Connection test: 0.000 V to 12.00 V

Measuring resistance: 10.00 Ω to 100.0 k Ω

Measuring capacitance (For parts inspection): 10.00 p F to 100.0 μ F

Inductance: 1.000 μH to 1.000 mH

Judgment Range -99.9% to +999.9% or absolute value Minimum resolution of XY movement 0.1 μm/pulse Minimum resolution of Z movement 1 μm/pulse
Minimum Pad Pitch

Top surface: 32 um (with CP1075-09)

Bottom surface: 44 um (with CP1075-09)

Minimum Pad Size

Top surface: 2 um (with CP1075-09)

Bottom surface: 14 um (with CP1075-09)

Testable Board Size

Thickness: 0.5 mm (0.02 in) to 2.5 mm (0.10 in)

Outer dimensions: 50 mm (1.97 in) W × 50 mm (1.97 in) D to 400 mm (15.75 in) W × 330 mm (12.99 in) D

Maximum Testable Area 398 mm (15.67 in) W × 304 mm (11.97 in) D
Clamp Method Board 2-side chuck method (with tension function)
More Information
Attribute Value
Data Sheet Click here to view
