MR8741
MR8741
Hioki
Memory HiCorder
Single-device Solution for Waveform Recording and Generation, High-speed 16-channel/Isolated Multi-channel System Recorders (rack-mounted)

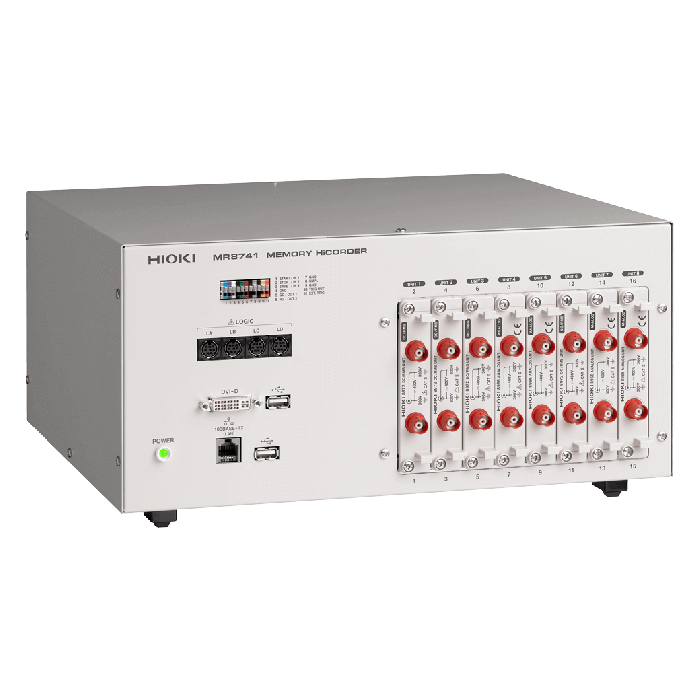

The MR8741 is rack-mountable data acquisition system that delivers high-speed, multi-channel measurements over maximum of 16 channels. The MR8990 DVM module is a 2-channel input unit for the MR8741 for measuring minute fluctuations in output from sensors in automobiles and other equipment and voltage fluctuations in devices such as batteries at high levels of precision and resolution.
Use with the Arbitrary Waveform Generator Unit U8793 to create a function generator, arbitrary waveform generator, and waveform measurement in a single device.
Key Features
- Introducing the DVM Unit MR8990 with high 24-bit resolution! Perform high-speed, high-accuracy measurement without going through a scanner.
- Support for multi-channel measurement (MR8741: up to 16 ch)
- Isolated input (between input channels; input-to-chassis isolation: maximum input-to-ground rated voltage of 300 V AC/DC)
- High-speed sampling (max. 20 MS/s)
- Ideal for rack-mounting (4U height/within 180 mm; display-less, box-type design)
- Display waveforms and make settings on a DVI-D connected monitor and mouse
- Remote measurement via LAN using control commands from a PC (*1)
*1: Screen monitoring and remote operation available via Internet browser. For faster and more convenient remote operation, we recommend using the Hioki 9333 LAN Communicator.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | 100 to 240 V AC, 50/60 Hz (120 VA max.) |
| Dimensions and Weight | 350 mm (13.78 in)W × 160 mm (6.30 in)H × 320 mm (12.60 in)D, 5.4 kg (190.5 oz) (main unit only) |
| Included Accessories | Instruction manual ×1, Application disk (Wave viewer Wv, Communication commands table) ×1, Power cord ×1 |
| Number of Channels | 16 ch analogue + 16 ch logic, or 10 ch analogue + 64 ch logic (when used with built-in logic input + plug-in logic unit 8973 × 3) |
| Measurement Ranges |
5 mV to 20 V/div, 12 ranges, resolution : 1/100 of range (when using 8966) 5 mV to 50 V/div, 5 ranges, resolution : 1/50,000 of range (when using MR8990) |
| Max Rated Voltage to Earth | 300 V AC/DC (input and instrument are isolated; between input channels and chassis; upper limit voltage that can be applied between input channels without damage) |
| Frequency Characteristics | DC to 5 MHz (-3 dB, when using 8966) |
| Measurement Functions | Memory (high-speed recording), FFT, Recorder |
| Memory Capacity | 16 MW/ch (fixed), total of 256 MW installed |
| Removable Storage | USB memory stick (USB 2.0) |
| External Interfaces |
[LAN] 100Base-TX (DHCP and DNS support, FTP server, HTTP server) [USB] USB 2.0 Series A receptacle × 2 (mouse operation) |
| Display | None (1 digital DVI terminal, 800 × 600 dots) |
| Number of Slots |
8 slots (Max. 8) [Limitation on number of slots] cannot use Current Unit 8971 When using the Logic Unit 8973: Max. 3 |
| Number of Logic Channels |
16 ch logic (Logic probe terminal GND share a common GND with chassis. ) on condition that DVM Unit MR8990 is used on slots 1 and 2, cannot use built-in logic input [Limitation on using built-in logic input] (with logic measurement ON)
|
| Time Axis (Memory Function) | 5 µs to 5 min/div; 26 ranges; time axis resolution: 100 points/div; time axis expansion: 3 stages from ×2 to ×10; compression: 13 stages from 1/2 to 1/20,000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
