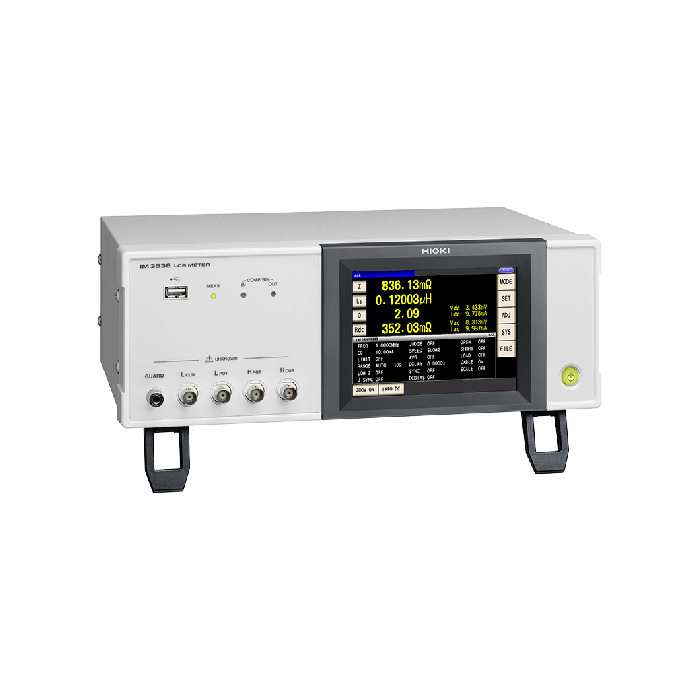

Hioki IM3536 LCR Meter | APC Technology Group

IM3536

IM3536

Hioki

LCR Meter

General-Purpose LCR Meters with Measurement Frequency from DC, 4 Hz to 8 MHz

Hioki LCR Meters and Impedance Analysers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM3536 raises the industry standard for general-purpose LCR meters by offering a wide DC and 4 Hz to 8 MHz (*1) testing frequency while delivering 0.05% accuracy, ideal for evaluating the characteristics of next generation electronic components, including power supply inductors thanks to the instrument’s maximum measurement frequency of 8 MHz (*1).


Key Features

  • DC, 4 Hz to 8 MHz (*1) measurement frequency
  • High-speed measurement of 1 ms (fastest time)
  • High-precision measurement of ±0.05% rdg. (representative value)
  • Guaranteed accuracy range from 1 mΩ, low-impedance measurement with unmatched repeatability
  • DC bias function: Measure under conditions simulating actual use or in accordance with industry standards
  • Exceptional specifications and cost-performance for a wide range of applications, from R&D to production lines

*1: Can be customised up to 10 MHz (special order available). Ask our team for details.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 100 to 240 V AC, 50/60 Hz, 50 VA max.
Included Accessories Power cord ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1
Display 5.7-inch color TFT with touch panel
Measurable Range 100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z)
Functions Comparator, BIN measurement (10 categories for 2 measurement parameters), Trigger function, Open/short compensation, Contact check, Panel loading/saving, Memory function
Dimensions and Weight 330 mm (12.99 in) W × 119 mm (4.69 in) H × 230 mm (9.06 in) D, 4.2 kg (148.1 oz)
Basic Accuracy Z ±0.05% rdg. θ: ±0.03° (representative value, Measurable range: 1 mΩ to 200 MΩ)
Measurement Parameters Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ), σ, ε
Measurement Modes LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions)
Display Range

Z: 0.00 m to 9.99999 GΩ, Y: 0.000 n to 9.99999 GS, θ: ± (0.000° to 180.000°), Q: ± (0.00 to 9999.99), Rdc: ± (0.00 m to 9.99999 GΩ), D: ± (0.00000 to 9.99999), Δ%: ± (0.000 % to 999.999 %), or other

Measurement Frequency 4 Hz to 8 MHz (5 digits setting resolution, minimum resolution 10 mHz)
Measurement Signal Level

[Normal mode: V mode/CV mode]
4 Hz to 1.0000 MHz: 10 mV to 5 Vrms (maximum 50 mArms)
1.0001 MHz to 8 MHz: 10 mV to 1 Vrms (maximum 10mArms)

[Low impedance high accuracy mode: V mode/CV mode]
4 Hz to 1.0000 MHz: 10 mV to 1 Vrms (maximum 100 mArms)

[Normal mode: CC mode]
4 Hz to 1.0000 MHz: 10 μA to 50 mArms (maximum 5 Vrms)
1.0001 MHz to 8 MHz: 10 μA to 10 mArms (maximum 1 Vrms)

[Low impedance high accuracy mode: CC mode]
4 Hz to 1.0000 MHz: 10 μA to 100 mArms (maximum 1 Vrms)

[DC resistance measurement]
Measurement signal level: Fixed at 1 V

Output Impedance Normal mode: 100 Ω, Low impedance high accuracy mode: 10 Ω
DC Bias Measurement

Generating range: DC voltage 0 V to 2.50 V (10 mV resolution)
In low Z high accuracy mode: 0 V to 1 V (10 mV resolution)
