IM7581-02
IM7581-02
Hioki

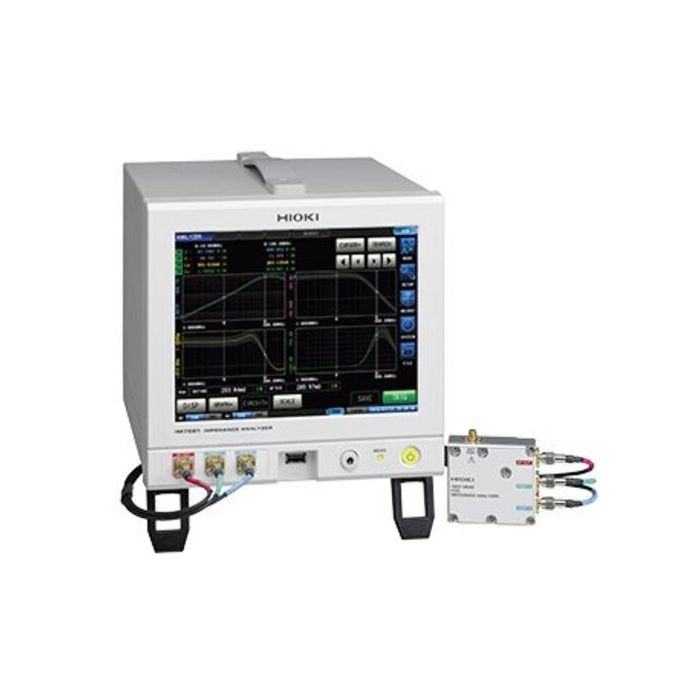

Impedance Analyser - Connection cable 2 m is bundled
100 kHz to 300 MHz Measurement Frequency Impedance Analyser with 0.5 ms Test Speed
Hioki LCR Meters and Impedance Analysers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7581 offers a top measurement time of 0.5 ms over a 100 kHz to 300 MHz frequency range, making it ideal for high volume production of ferrite chip beads and chip inductors.
Key Features
- 100 kHz to 300 MHz testing source frequency
- Fastest test speed of 0.5 msec (Analog measurement time)
- ±0.72% rdg. basic accuracy
- RF I-V method
- Half-rack size body and palm-sized test head
- Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
- Make frequency sweeps, level sweeps and time interval measurements in Analyser Mode
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
