AS-08, 30 MHz – 18 GHz
AS-08
Narda Safety Test Solutions
Antenna Set 30 MHz to 18 GHz

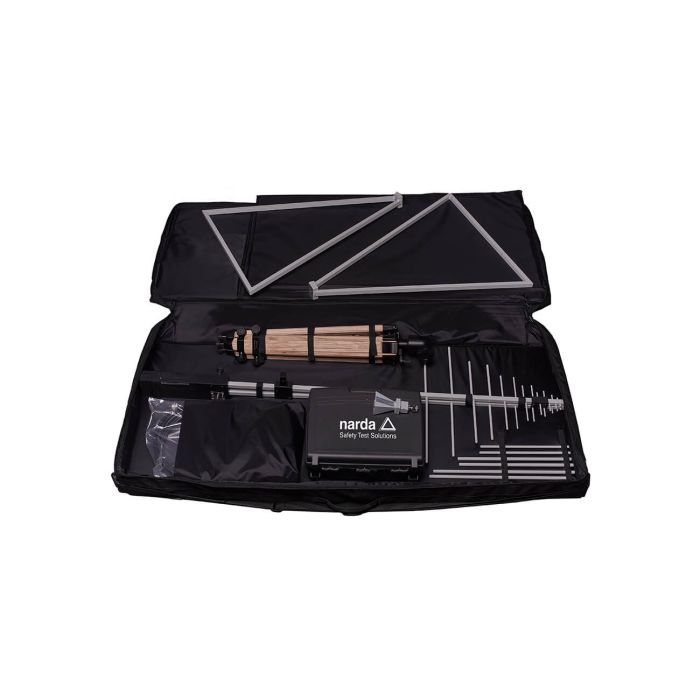

AS-08 is a Compact Broadband Antenna Set composed of a BL-01 Bi-Conical Log-periodic Dipole and DR-01 Double Ridged Horn Antenna designed for radiated emissions and immunity testing that can be used in conjunction with any receiver or spectrum Analyser.
Its ideal companion is the EMI Receiver Unit 9060 or 9180, which can be easily mounted on the antenna mast.*
Key Features
- 30 MHz to 18 GHz frequency range
- Excellent antenna factor
- Tripod adapter for easy vertical-horizontal polarization change
- Individual calibration
- Robust, rustproof aluminium construction
- Lightweight
*The direct connection between antenna and PMM receiver eliminates additional sources of uncertainties due to coaxial cable attenuation and scattering. For further information please consult our brochure "Fully CISPR-Compliant Digital EMC/EMI receivers 10 Hz to 18 GHz".
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range |
BL-01: 30 MHz to 6 GHz DR-01: 6 to 18 GHz |
| Gain |
BL-01: -9 to +5 dBi typical DR-01: 9 to 16 dBi typical |
| Antenna Factor |
BL-01: 8 to 45 dB/m typical DR-01: 36 to 41 dB/m typical |
| Max Input Level |
BL-01: 100 W @ 1 GHz 50 W @ 6 GHz DR-01: 150 W |
| Construction | Aluminium |
| Impedance | 50 Ω nominal |
| Colour | RAL 7035 |
| Dimensions | BL-01: 145 x 61 x 157 cm DR-01: 55 x 44 x 177 mm |
| Weight |
BL-01: 5.5 kg DR-01: 0.25 kg |
| Connector |
BL-01: N female DR-01: N female |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
