100-T Series
100-T Series
Bird

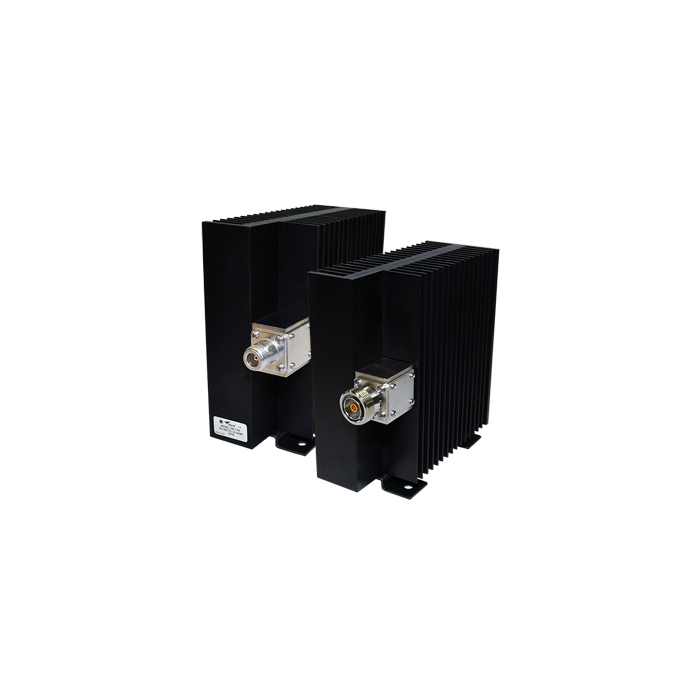

100 Watt, Convection-Cooled Dry Terminations
100-T Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
100-T Series Specifications
- Wide variety of connectors
- Rugged Reliability provides years of trouble free use
- Compact size easily transportable benchtop design
- High Quality Construction
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Impedence Ohm | 50.0000 |
| Housing surface finish | Black Anodized Aluminum |
| VSWR and Frequency Range | DC to 1 GHz @ 1.10:1 max., 1 GHz to 3 GHz @ 1.25:1 max. |
| Operating Position | Vertical |
| Peak Power | 2.5 kW max. |
| Cooling Type | Dry (Convection-Cooled) |
| Connectors | N, BNC, 7/16 DIN |
| Temperature Range | -40 to +40 °C |
| Dimensions | (with N-type connector): 6.4" x 2.6" x 7.0" (L x W x H), 162.6 x 66.1 x 172.8 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
