2-T Series
2-T Series
Bird RF

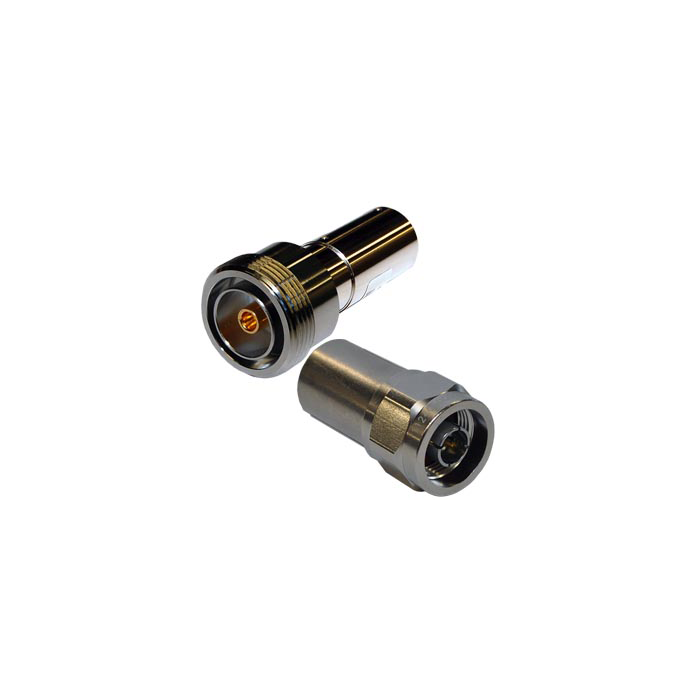

2 Watt, Convection-Cooled Dry Terminations
2-T Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
2-T Series Specifications
- Wide variety of connectors
- Compact size easily transportable
- Optionally available with Aluminum Nitride (BeO free) - See Model 2-NT
- Available as a Calibrated Mismatch Load (See Related Products )
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Housing surface finish | Tri-Alloy |
| VSWR and Frequency Range | DC - 6 GHz @ 1.25:1 max (SMA), DC - 1 GHz @ 1.10:1 max. (all except SMA), 1 - 4 GHz @ 1.25:1 max. (BNC, TNC and 7/16 DIN), 1 - 6 GHz @ 1.25:1 max. (N-Type) |
| Operating Position | Any |
| Cooling Type | Dry (Convection-Cooled) |
| Connectors | SMA, BNC, 7/16 DIN, N, TNC |
| Temperature Range | -40 to +40 °C |
| Dimensions | 1.6" L x 0.8", dia. (40.7 x 20.4 mm), 2.60" L x .75" dia. (6.6 x 1.9 mm ) [7/16 DIN] |
