Bird

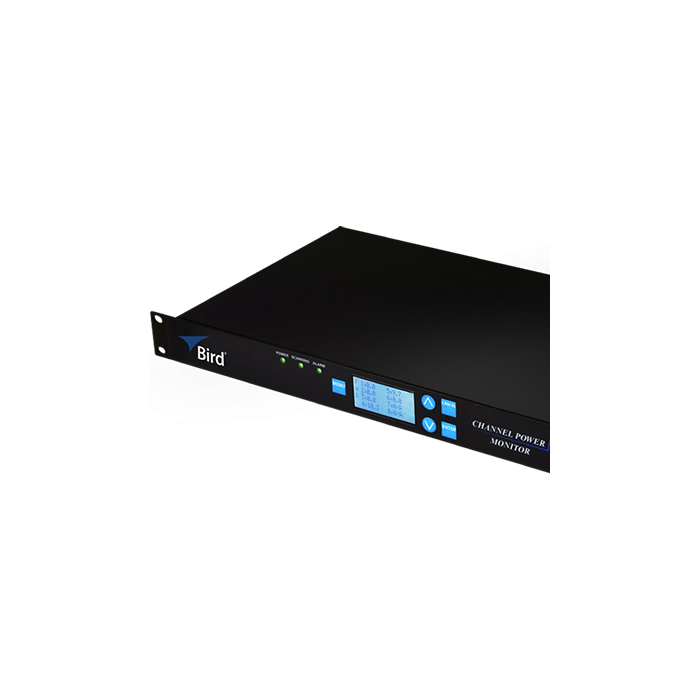

Channel Power Monitor Display
3141, Channel Power Monitor Display monitors all aspects of your LMR system. Continuously monitor radio performance, combiner loss and antenna/feedline characteristics to identify and alarm on critical changes. With the data logging function, long term performance monitoring can be used to identify changes before they negatively impact system enabling your preventative maintenance team to address problems before they occur. Solutions are available for the entire range of land mobile radio frequencies from 144 MHz to 940 MHz.
Setup and monitoring is simple with the built-in web server available anywhere there is an internet connection and a web browser, so it is as close as the computer on your desk or your mobile phone using our Android app. Receive SNMP alerts or just check up on your system at your convenience.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
3141 Specifications
- Data Logging
- Slim 1RU package
- Built-in web server provides SNMP messaging
- Push-to-Talk (PPT) compatibility is standard
- Full control of alarm and data logging settings
- Capable of monitoring up to 16 non-directional and 16 directional sensors to cover your large radio system
- Software and hard contact alarms
- Directly measure the power output of each RADIO simultaneously. Alarm on failure and record measurements for later analysis
| Attribute | Value |
|---|---|
| Product Brand Name | Channel Power Monitor Display |
| Manufacturer | Bird |
| Relative Humidity | 95% ±5% max. (non-condensing) |
| Altitude | up to 10,000 feet (3,048 m) |
| Power | 3141A15: + 15 VDC (supplied by 115/230 VAC Adapter) < 3 Amps 3141A48: ± 48 VDC (+48 or -48) < 1 Amp |
| Temperature Range | Operating: 0 to +50°C (32 to 122°F) Storage: -20 to + 80°C (-4 to 176°F) |
| Dimensions | 1 RU, 5.25" x 19" x 1.75" (133.35 x 483 x 44.5 mm) |
