GPS-88

GPS-88

Pendulum Instruments

GPS-controlled OCXO Frequency Standard

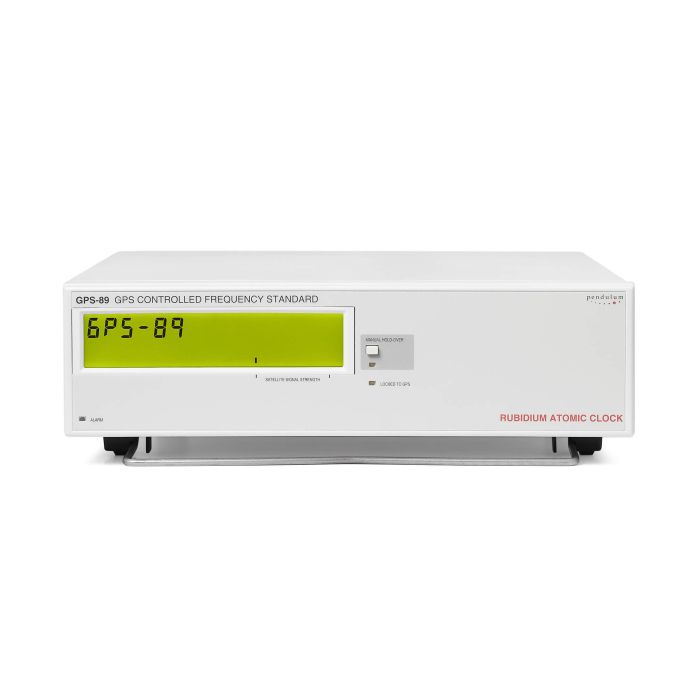

main product photo

Deliver precision frequency and time reference with these GPS-controlled frequency standards. The Pendulum GPS-88 and GPS-89 are fully traceable and extremely accurate frequency standards, with applications in telecommunications, calibration laboratories, automated test systems and design departments.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Power Consumption Less than 25W at warm-up
Less than 12W continuous operation
Safety Compliant to CE: EN 61010-1 +A1 (1992) +A2 (1995), Cat II, Pollution degree 2
Key Features
  • Traceable internal calibration system approved by SP (Swedish National Testing and Research Institute)
  • No calibration cost – ever
  • Remote monitoring via Ethernet interface
  • Cesium stability – at Rubidium price
  • No doubt about accuracy, display of frequency offset
  • Standard frequencies for telecom, calibration and test systems
Accessories
  • Multi-GNSS L1 Outdoor Antenna, with L-bracket for vent pipe/pole mounting via metal straps (included)
  • GPS antenna cable 20m long, type N-N terminated
  • GPS antenna cable 50m long, type N-N terminated
  • GPS antenna cable 130m long, type N-N terminated
EMI Compliant to CE: EN 61326-1 (1997)
Calibration and Extended Warranty
  • Timebase aging measurement with report, per week. Available for CNT-9x, GPS-12x, GPS-88/89, 6688/6689 (NOTE This option includes NO Calibration, which must be ordered separately)
  • Calibration certificate w. Protocol, standard oscillator
  • Two years Extended warranty to a total of 4 years (without product registration, or 5 years (with product registration).
  • Service agreement 1 year. Includes yearly functional check, calibration of time-base oscillator, calibration of RF output level (GSG-5/6 only), priority repair and more
Built in Options
  • 5 extra 10 MHz outputs for GPS-88/89
  • Multiple outputs; 0.1, 1, 5 and 10 MHz outputs for GPS-88/89
  • 5 extra 2.048 MHz outputs for GPS-88/89
  • Programmable pulse output for GPS-88/89
  • Optional Ethernet interface for GPS-88/89
Storage Temperature -40°C to +70°C
Operating Temperature 0°C to +50°C
Dimensions 315 x 86 x 395 mm
More Information
Attribute Value
Data Sheet Click here to view
