ETS-Lindgren
Shielded Coil Antenna

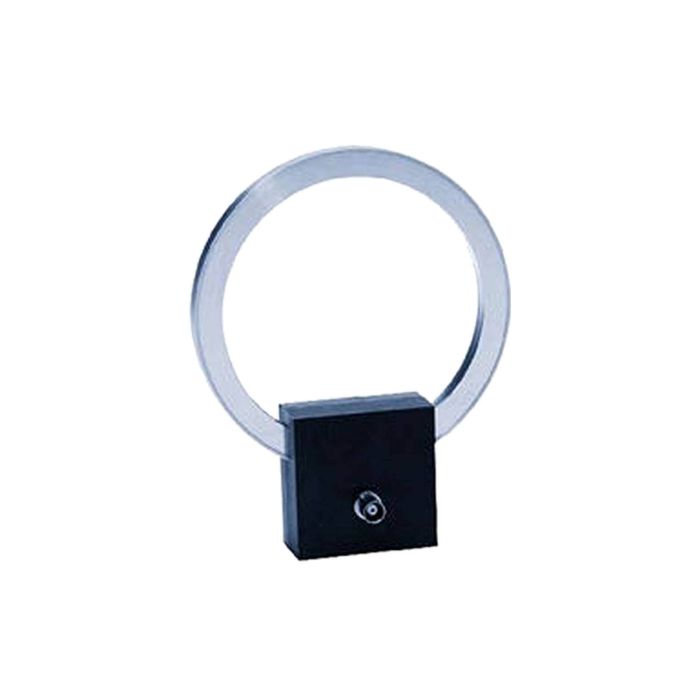

The Model 7604 is a magnetic field pick-up coil antenna with a loop constructed of aluminium for MIL-STD EMC testing.
The coil is 13.3 cm (5.25 in) in diameter and wound with 36 turns of 7 strands of 41 gauge Litz wire. It is designed specifically for precise magnetic field sensing in EMC testing environments.
Key Features
- Magnetic field pick-up coil design
- 13.3 cm diameter aluminium loop
- 36 turns of Litz wire construction
- Designed for MIL-STD EMC testing
- Shielded coil design
- Individually calibrated
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 2.8 cm (1.10 in) x 6.35 cm (2.5 in) x 17.78 cm (7.0 in) (L x W x H) |
| Weight | 0.9 kg (1.98 lb) |
| Frequency Range | 100 Hz – 100 kHz |
| Impedance | 50 Ω |
