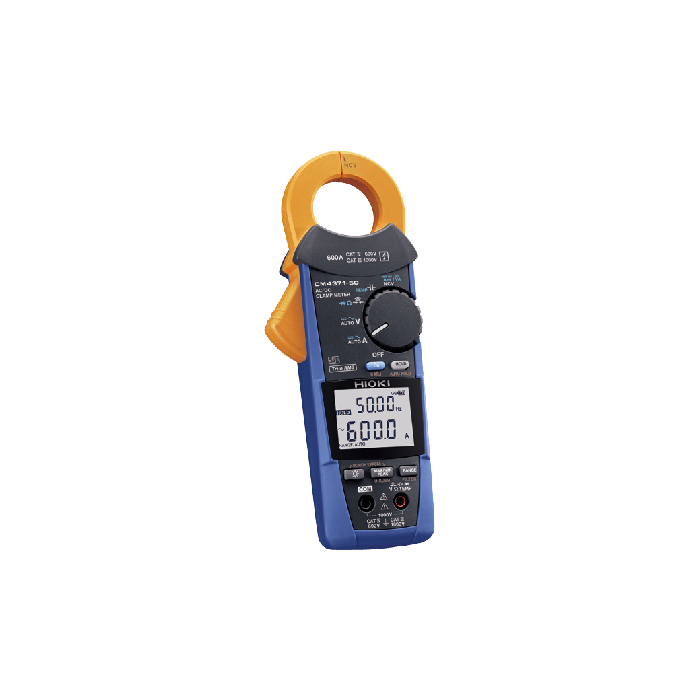

Hioki CM4371-50 AC/DC Clamp Meter | APC Technology Group

CM4371-50

CM4371-50

Hioki

AC/DC Clamp Meter

True RMS 600 A AC/DC Clamp Meter for the Toughest Situations
With DMM Functions that Deliver Top Safety

Key Features

  • CAT IV 600 V, CAT III 1000 V
    When using the P2010: CAT III 2000 V, CAT IV 1000 V
  • Measure DC voltages of up to 2000 V (*1) for open voltage inspections of solar panels
  • Simultaneously measure inrush current in RMS and crest values
  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file (*2)



*1:When using the optional DC High Voltage Probe P2010. The clamp meter itself is capable of measuring up to 1000 V DC.

*2:Wireless Adapter Z3210 is necessary.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply

LR03 Alkaline battery ×2
Continuous use: 40 hr (without Z3210 installed), 20 hr. (with Z3210 installed and using wireless communications)
Other conditions: 10 A AC measurement, backlight off, 23°C reference value

Included Accessories Test Lead L9300, Carrying Case C0203, LR03 Alkaline battery ×2, Instruction Manual×2, Operating Precautions ×1
Dimensions and Weight 65 mm (2.56 in) W × 215 mm (8.46 in) H × 35 mm (1.38 in) D mm, 340 g (12.0 oz)
Other Functions DC power, Continuity check, Diode check, Automatic AC/DC detection, Pass/fail judgement function of DC A and DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Low-pass filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment
Dustproof and Waterproof

IP20 (Voltage measurement in a completely dry condition. When jaw closes)
IP54 (While in storage)

Core Jaw Diameter φ33 mm (1.30 in), Jaw dimension: 69 mm (2.72 in) W× 14 mm (0.55 in) D
DC Voltage range 600.0 mV to 1000 V (When using P2010: 600.0 V to 2000 V)
AC Voltage range 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45 - 66 Hz: ±0.9% rdg. ±0.003 V (at 6 V)
DC + AC Voltage range 6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45 - 66 Hz: ±1.0% rdg. ±0.013 V (at 6 V)
DC Current Range 20.00 A/600.0 A, Basic accuracy: ±1.3% rdg. ±0.08 A (20 A range)
AC Current Range 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy: 45-66 Hz: ±1.3% rdg. ±0.08 A (at 20 A)
Frequency Range 9.999 Hz to 999.9 Hz, 3 ranges, Basic accuracy: ±0.1% rdg. ±0.003 Hz (at 9.999 Hz)
More Information
Attribute Value
Data Sheet Click here to view
