SOM-DB2500
SOM-DB2500
Advantech

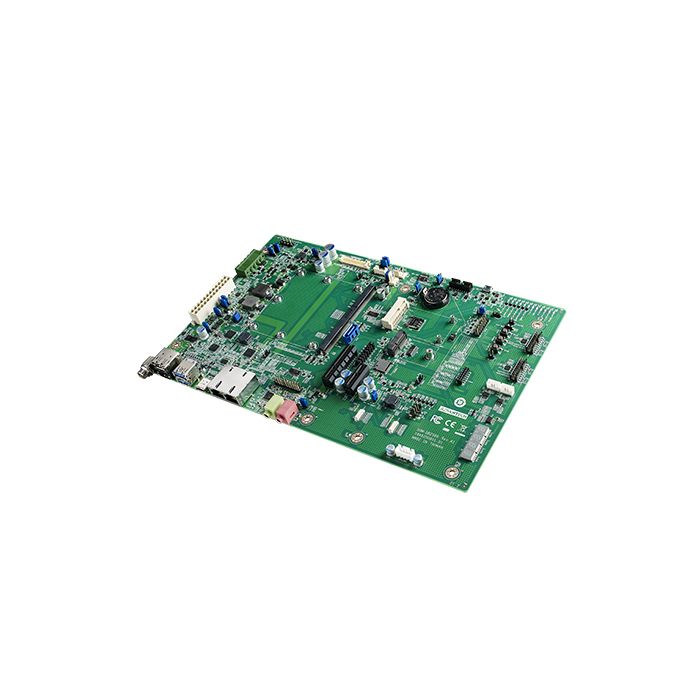

Development Board for SMARC 2.0
Advantech Development boards provide a schematic software and reference design to reduce efforts needed in development stage. Advantech Development Board can be used to test carrier board problems and support COM series, RTX, SMARC, Qseven, and ETX / XTX form factors.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Form Factor | Advantech SMARC V2.0 Module Series |
| Supply Voltage |
Vin: 12V
RTC Battery: 2.0V ~ 3.3V |
| RJ45 | 2.0000 |
| USB 3.0 |
1 USB3.0 (Type A)
1 USB3.0 (Type C) |
| COM Port | 4 Ports (2 Ports with DTS/RTS) |
| HDMI | 1 Port |
| Audio | Realtek ALC888 HD Audio (Line-in, Line-out, MIC, SPDIF) |
| LCD | LVDS: 18/24-bit single or dual channe |
| DP++ | 1 Port |
| USB Type C | 1 Port |
| PCI Express x4 | 1 PCIe x4 |
| PCI Express x1 | 1 PCIe x1 |
| LPC | Yes |
| I²C Bus | 2 |
| CAN Bus | Yes |
| Gigabit Ethernet | Speed: 10/100/1000 Mbps |
| SATA3.0 | 1 Ports (10 Gbps) |
| SPI Bus | 1 |
| GPIO | 12 |
| SDIO | 1 (micro SD card socket / optional to M.2 slot) |
| TPM | 1 (TPM 2.0) |
| Fan | 2 (1 smart fan from module side, 1 fixed-voltage fan) |
| Port 80 | 1 |
| Power Type | ATX/AT: Vin; DC-IN: Vin |
| Vibration Resistance | 3.5 Grms |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Operating Temperature | Standard: 0 ~ 60 °C (32 ~ 140 °F) |
| Product Type | Development Board |
| Humidity |
Operating: 40 °C @ 95% relative humidity, non-condensing
Storage: 60 °C @ 95% relative humidity, non-condensing |
| Dimensions | 304.8 x 190.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
