Erzia
Q Band Low Noise Amplifier

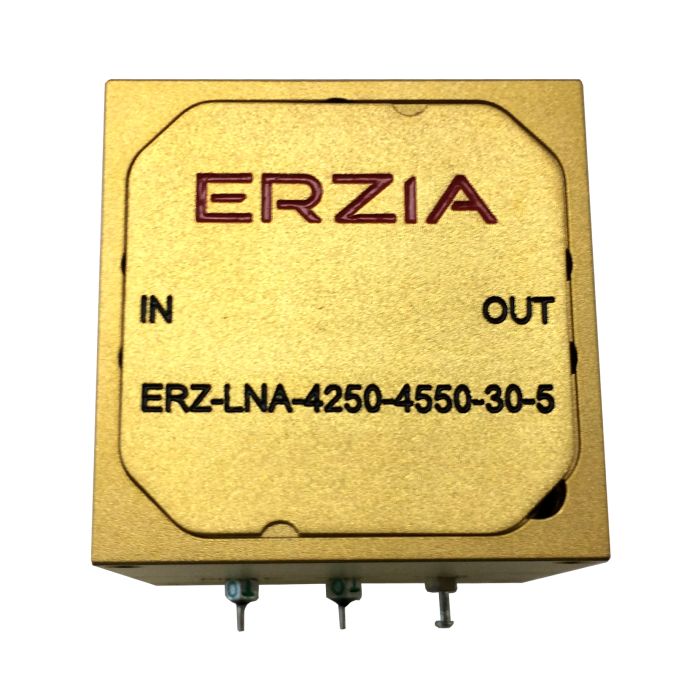

The ERZ-LNA-4250-4550-30-4.5 is a Q band low noise amplifier providing a gain of 29dB and a noise figure below 4.5 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 42.5 |
| Frequency Stop (GHz) | 46.0000 |
| Power Supply (V) | 12± 3V |
| Current (mA) | 250 |
| Storage Temperature | -55°C to 125°C |
| Band | Q Band |
| Output Power (dBm) | 19 |
| Gain (dB) | 30 |
| Operating Temperature | -40°C to 85°C |
| Connectors | WR22 |
| Product Type | Low Noise Amplifier |
| Dimensions | 40 x 40 x 40 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
