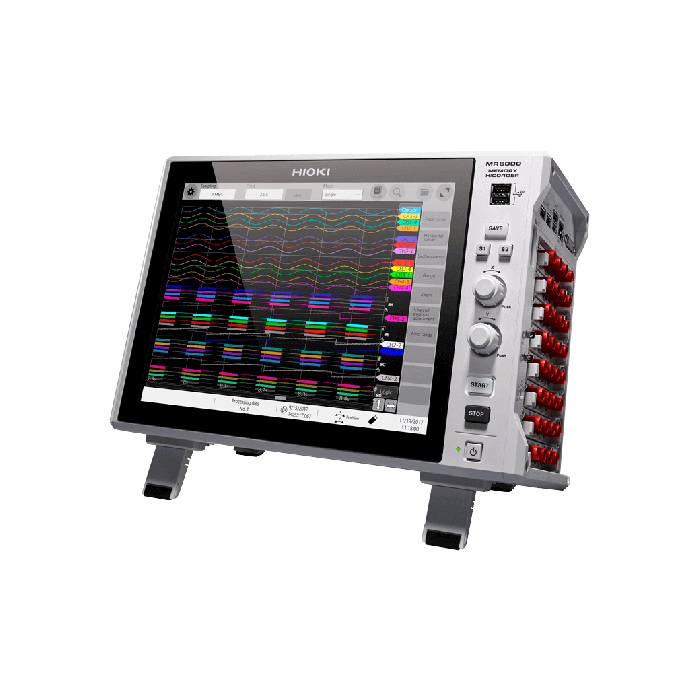

MR6000

MR6000

Hioki

Memory HiCorder

Highest Measurement Capabilities and Fastest Transfer Rate in History

The MR6000 overcomes all barriers to reach new ground and meet challenges that are yet to be seen. World class specifications, operability and design - Hioki’s newest memory recorder has been re-engineered from top to bottom, delivering unprecedented performance that will change how you look at waveform recording.

Key Features

  • Work efficiently and intuitively using the MR6000’s large touch panel
  • Captures momentary phenomena of each channel simultaneously with isolation measurement of up to 200 MS/s (when using the High Speed Analog Unit U8976)
  • Enjoy a stress-free user experience thanks to dramatically faster saving of data
  • Save data in real time while measurement continues
  • MR6000-01 includes real-time waveform calculation and digital filter calculation
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 100 to 240 V AC (50/60 Hz) (300 VA max.)
Dimensions and Weight 353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only)
Included Accessories Power cord ×1, Quick start manual ×1, Precautions concerning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only)
Number of Input Units Max. 8 units
Number of Channels Max. 32 analogue channels (when using the U8975), or 128 logic channels (when using the 8973)
Measurement Ranges 10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range 4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range
Frequency Characteristics DC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975)
Max Sampling Speed

200 MS/s, all channels simultaneously (when using the U8976)
External sampling: 10 MS/s

Removable Storage

SD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1
FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI.

External Interfaces LAN, USB, SD, SATA, Monitor output
Recording Methods

Normal: Normal waveform recording
Envelope: Record maximum and minimum values every fixed period

Storage Memory Capacity 1 G-words
Display 12.1 inch XGA-TFT color LCD (1024 × 768 dots)
