Wavecontrol RF Safety Continuous EMF monitor | APC Technology Group

MonitEM

MonitEM

Wavecontrol

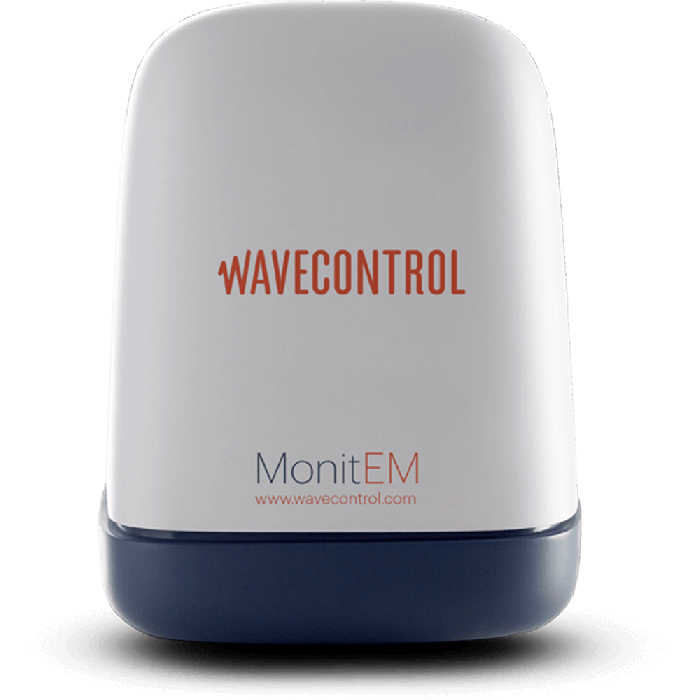

Wavecontrol MonitEM Continuous EMF Monitor, using interchangeable probes 10 Hz to 60 GHz. IP66 casing.

24/7 Continuous Measurement of Electromagnetic Fields

The Wavecontrol MonitEM EMF monitor provides continuous measurements of electromagnetic fields for telecommunications equipment or other radiation sources. With the Wavecontrol MonitEM, you can ensure that emission levels of any source of electromagnetic radiation (mobile telephone antennas, WiFi and high-voltage power lines are in accordance with all applicable regulations. And with an IP66 ruggedized case, the Wavecontrol MonitEM is suitable for any environment. Equipped with a solar panel supply and wireless communication, the MonitEM provides round-the-clock autonomous monitoring.

24/7 Monitoring

MonitEM smart energy technology provides a combination of AC power with a battery and solar panel. Smart energy management allows uninterrupted, efficient and sustainable operation. The built-in modem allows the remote wireless communication of the continuous EMF monitor with the control centre.

Resistant to extreme weather conditions

The Wavecontrol MonitEM holds an environmental protection rating of IP 66, the highest in its class. A protection rating of IP 66 is indispensable for EMF monitors that must remain permanently outdoors, exposed to storms and air-borne particles. MonitEM's high degree of protection ensures that the device remains in good working condition for years, reducing maintenance costs whilst providing greater reliability.

MonitEM Key Features:

  • IP 66 protection - Ruggedized device, built to deal with extreme weather.
  • ITU-T K.83 recommendation in accordance with the International Telecommunication Union.
  • 24/7 monitoring - Permanent around-the-clock monitoring.
  • Control centre - optional software for system management.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Dimensions 253 mm x 292 mm x 385 mm
Alarm
  • Field level
  • low battery
  • hibernation
  • opening
  • calibration
  • communication error
  • probe error
  • temperature
GPS (Optional) High-sensitivity WGS84 device (built-in)
Compatible Field Probes WP50, WPF3, WPF6, WPF8, WPF18, WPF40, WPF60, WPH60, WPH1000, WPT, WP-WiFi
Temperature Range - 25 ºC to + 60 ºC
Applications Industry, Telecommunications, powerline, defense and medical.
Features
  • 24/7 EMF Monitoring - Guaranteed autonomy with the “Smart Energy” function (AC + solar panel + battery)
  • Broadband measurements - Up to 3 kHz in LF and 60 GHz in HF
  • IP 66 Environmental protection - Resistant to extreme weather conditions
  • Compliance with ITU-T K.83 - Direct, easy and comprehensible comparison with regulated limits
  • Easy Installation - Accessories for easy installation in different surroundings
  • Control centre - Optional software for system management
More Information
Attribute Value
Data Sheet Click here to view
