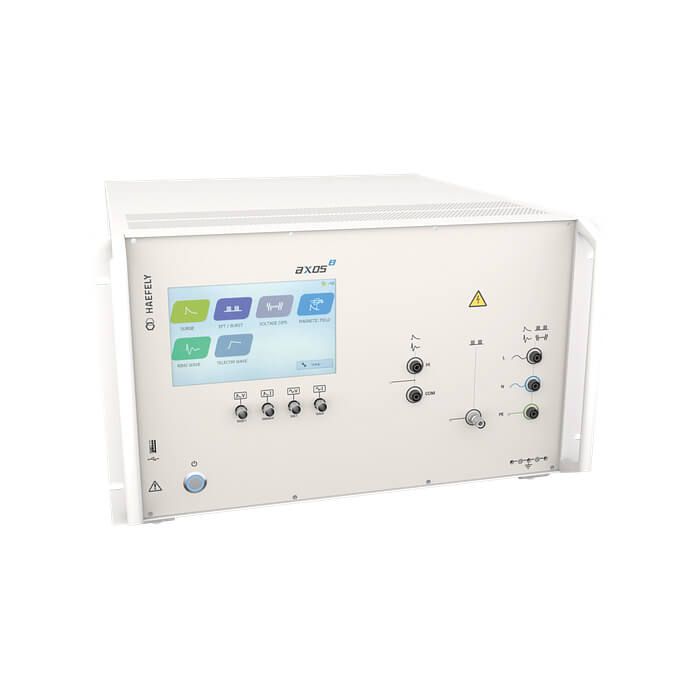

AXOS8 EFT/Burst - EMC Test System According to IEC/EN61000-4-4
The Haefely AXOS 8 - EFT/Burst is a stand-alone 5 kV EFT/Burst Generator with an integrated single-phase coupling decoupling network (CDN) for EMC testing applications up to 16 A.
The Haefely AXOS 8 - EFT/Burst can be upgraded to perform 7kV Surge Combination Wave (1.2/50 us & 8/20 us), 7 kV Ring Wave, 7 kV Telecom Wave (10/700 us), AC/DC Voltage Dips & Interrupts and Pulsed Magnetic Field tests via software and/or hardware upgrades.
The expandable functionality allows for quick and completely automated testing of the most common IEC, EN, ANSI, IEEE and UL standards. The AXOS unit can either be operated via the front panel by a large colour graphic interface or remotely from the PC. The easy-to-use menu, together with the availability of predefined test routines for different standards, makes testing easy and reliable, even for less frequent users. Numerous additional functions, such as an external start/stop function, allow easy integration of the test system also in customer-specific test environments.
Key Features
- Easy to operate with manual and automated test modes, software-assisted test preparation, pre-defined test routines and visually aided test setups
- Economic and Efficient: touch screen guarantees reduction of time and effort - experience and know-how at a reasonable price
- Multiple testing functions available in a single unit
- Safe and reliable operation by using safety interlock, warning lamp and emergency stop functions
- Voltage and current monitoring of surge impulses and EUT power provides valuable feedback to the test engineer
- Automatic generation of test report, including test parameters, test setup and test result
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories | Mains Cable, User Manual, Calibration certificate |
| Dimensions | 22“ / 6U (45 x 27 x 50 cm) |
| Weight | 30 kg |
| Standards |
IEC/EN 61000-4-4 EFT / Burst (Activated by default) |
| Applications |
|
| Control Power | 85 V - 264 V; 50/60Hz |
| User Test Storage | Unlimited |
| Remote Interface | Ethernet, RJ45 |
| Display | 7“ / 800x480 / 24 bit with touchscreen |
| External Trigger Input | 5 V TTL |
| Trigger Output | 5 V TTL |
| EUT Failed Input | 5 V TTL |
| Warning Lamp Output | 2 x 24 V / 1 A DC |
| USB | For USB memory stick |
| AUX Interface | D-sub 37p for external CDN, external transformer etc… |
| Sync Input | BNC, 10 V – 264 V AC |
| External Start/Stop Input | 5 V TTL, starts / stops predefined test sequence |
| Analogue Output | 0-10 V, for use with external options |
| Safety Circuit | Stops the test when unlocked |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
