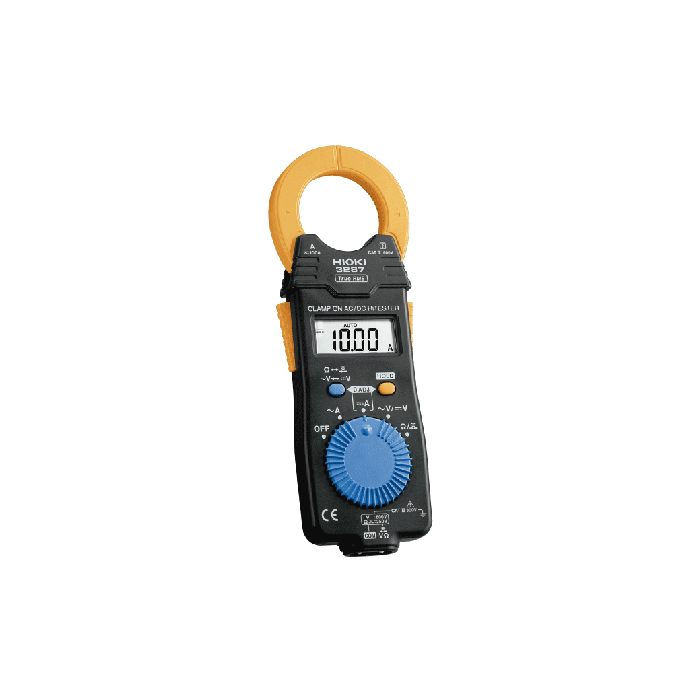

Hioki 3287 Clamp On AC/DC HiTester | APC Technology Group

3287

3287

Hioki

Clamp On AC/DC HiTester

Compact & Easy, One-Touch Maintenance on All Types of AC/DC Equipment

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The Hioki 3287 is an AC/DC current and voltage clamp meter that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires.

CAT III 600 V (Current)
CAT III 300 V (Voltage)

Key Features

  • Accurately measure even small currents with 10 A range
  • Voltage, resistance, and continuity check functions
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply Coin type lithium battery (CR2032) ×1, Continuous use 25 hours
Included Accessories Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1
Display LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Dimensions and Weight 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 170 g (6.0 oz)
Other Functions Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Core Jaw Diameter φ 35 mm (1.38 in)
DC Voltage range 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range

4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS)
Basic accuracy: ±2.3 % rdg. ±8 dgt.

DC Current Range 10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current Range

10.00/ 100.0 A (10 Hz to 1 kHz, True RMS)
Basic accuracy: ±1.5 % rdg. ±5 dgt.

More Information
Attribute Value
Data Sheet Click here to view
