AS-07, 30 MHz – 6 GHz
AS-07
Narda Safety Test Solutions
Antenna Set 30 MHz to 6 GHz

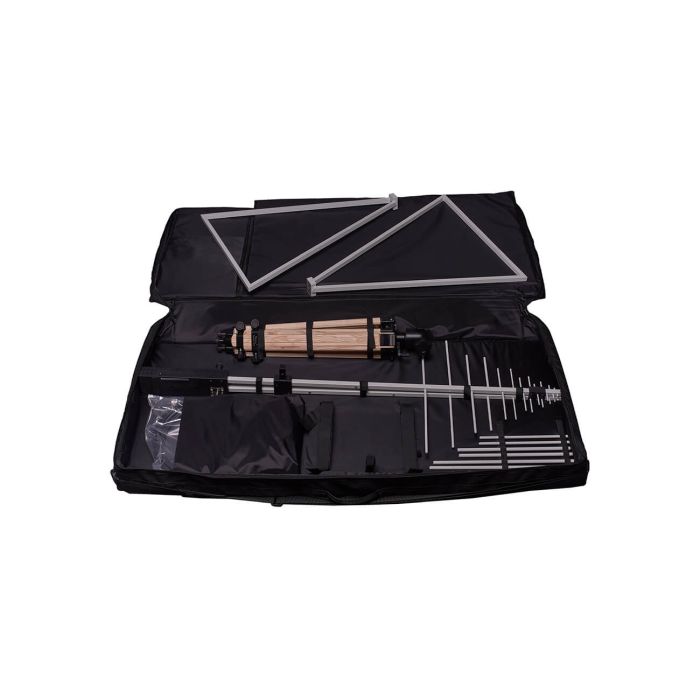

AS-07 is a Compact Broadband Antenna Set composed of a BL-01 Bi-Conical Log-periodic Dipole Array designed for radiated emissions and immunity testing that can be used in conjunction with any receiver or spectrum Analyser.
Its ideal companion is the EMI Receiver Unit 9060, which can be easily mounted on the antenna mast.*
Key Features
- 30 MHz to 6 GHz frequency range
- Excellent antenna factor
- Tripod adapter for easy vertical-horizontal polarization change
- Individual calibration
- Robust, rustproof aluminium construction
- Lightweight
*The direct connection between antenna and PMM receiver eliminates additional sources of uncertainties due to coaxial cable attenuation and scattering. For further information please consult our brochure "Fully CISPR-Compliant Digital EMC/EMI receivers 10 Hz to 18 GHz".
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 30 MHz to 6 GHz |
| Gain | -9 to +5 dBi typical |
| Antenna Factor | 8 to 45 dB/m typical |
| VSWR |
30 MHz - < 16:1 typical 60 to 120 MHz - < 4:1 typical 120 to 170 MHz - < 2:1 typical 170 MHz to 6 GHz - < 1.5:1 typical |
| Max Input Level | 100 W @ 1 GHz 50 W @ 6 GHz |
| Construction | Aluminium |
| Impedance | 50 Ω nominal |
| Colour | RAL 7035 |
| Dimensions | 145 x 61 x 157 cm |
| Weight | 5.5 kg |
| Connector | N female |
