Introducing the Tektronix 7 Series DPO: The New Standard in High-Fidelity Signal Analysis

Breakthrough Bandwidth, Industry-Leading Signal Integrity and Seamless User Experience for Next-Gen Applications

Introducing the 7 Series DPO high-performance oscilloscope from Tektronix, built to meet the uncompromising demands of high-speed serial, RF and high-energy physics applications. With industry-leading signal fidelity, high ENOB, and the lowest noise floor in its class, the 7 Series DPO empowers you to push the boundaries of what’s measurable.

Accelerate your workflow with faster measurement throughput and 10x faster data offload via 10GbE port and TekHSI Protocol, leaving you with more time to redefine the possible. Engineered for excellence, this is more than an oscilloscope — it’s a platform for your next breakthrough.

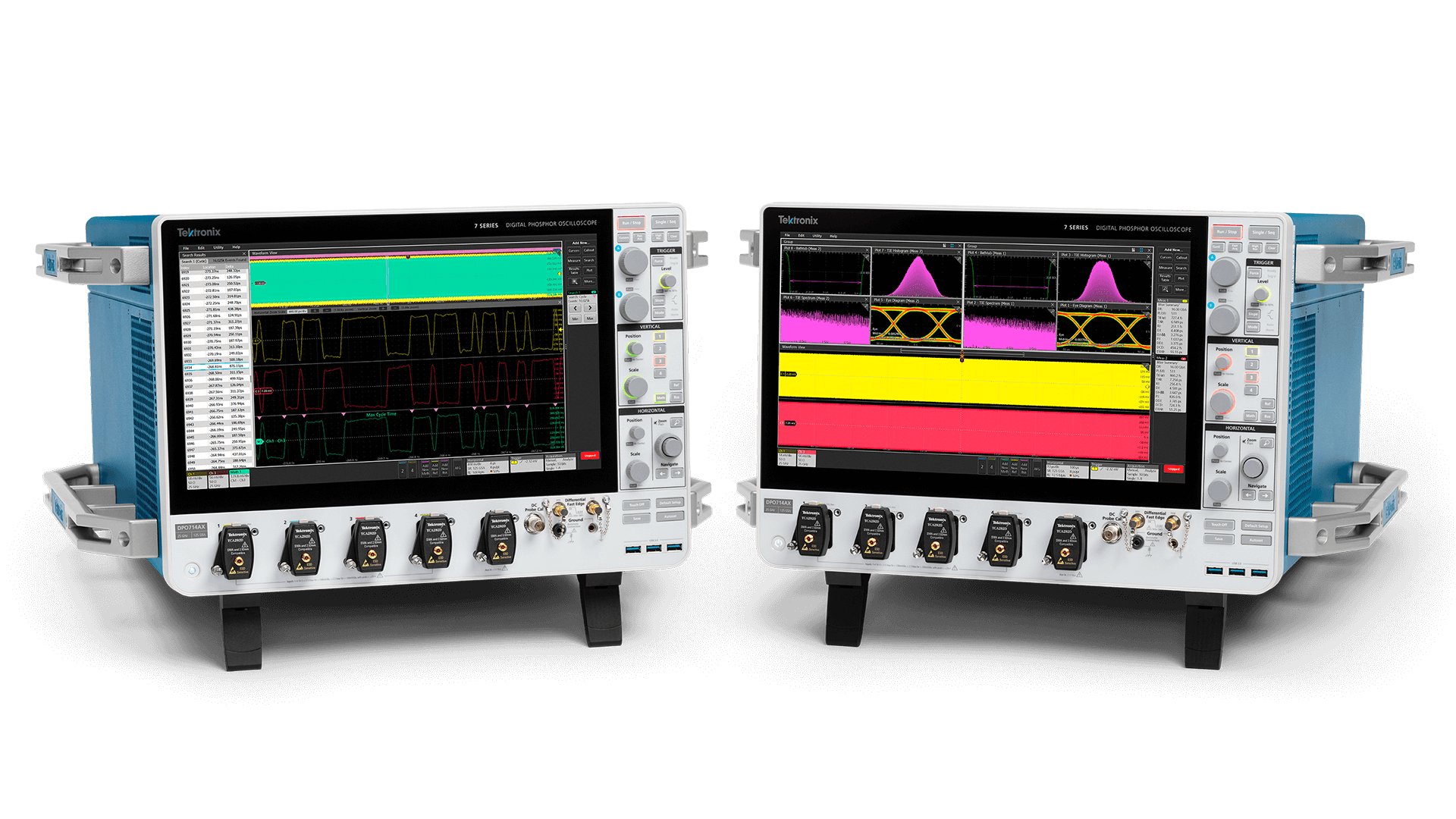

The DPO714AX 7 Series DPO (Digital Phosphor Oscilloscope) delivers unparalleled signal fidelity, high ENOB, low jitter, fast measurement throughput and an award-winning user interface making it ideal for meeting the evolving needs of high-speed serial, high-energy physics, and key RF applications. With up to 25 GHz analogue bandwidth, the 7 Series DPO provides the most accurate real-time performance with several industry firsts:

Key Features and Performance Specifications

• Available bandwidths (all analogue channels): 8 GHz, 10 GHz, 13 GHz, 16 GHz, 20 GHz, 25 GHz (customer upgradable)
• 4 TekConnect® input channels and one TekConnect Aux In each with TCA292D 50 Ω 2.92 mm input adapter
• Sample rate 125 GS/s on all 4 channels
• 10-bit ADC with highest ENOB and lowest random noise
• Precision timebase with low intrinsic jitter
• QuietChannel™ technology with active CTLE (Continuous Time Linear Equalisation) which compensates for high-frequency signal channel loss
• Record length of 500 Mpoints standard, 1 or 2 Gpoints optional
• P7700 and P7600 Series TriMode™ probe compatible
• 15.6 inch high-definition touch screen display (1920 x 1080 resolution)

Also Introducing the New Tektronix MP5000 Series - A Modular Precision Test System Built for Speed, Accuracy and Efficiency

Scalable precision testing with flexible modules and optimised rack space

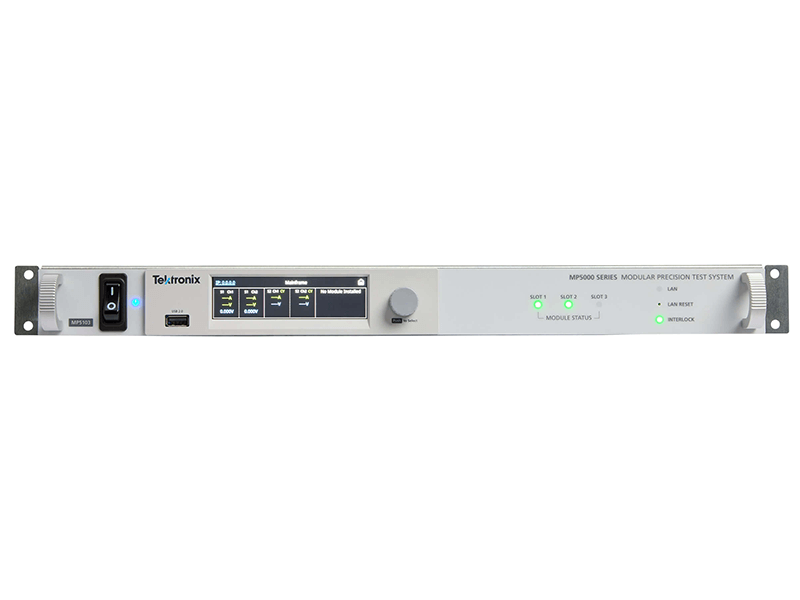

Tektronix is proud to announce the release of the MP5000 Modular Precision Test System, a powerful new solution designed to meet today’s demanding test requirements. Built with flexibility and efficiency in mind, this compact system combines high-density design with advanced functionality, giving engineers a smarter way to test. Whether you’re validating a design, debugging a device, or running complex parallel test systems, the MP5000 Series delivers the accuracy, speed and scalability you need, all within a streamlined 1U rack space.

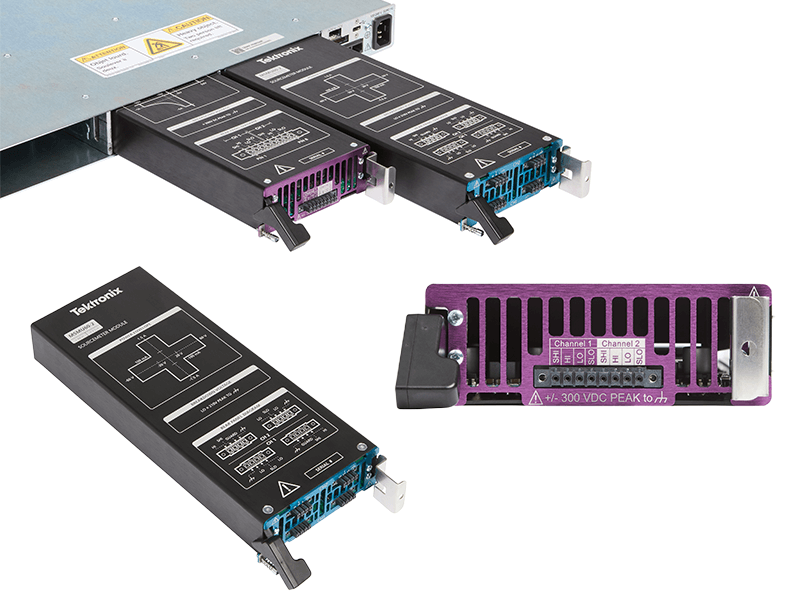

The Tektronix MP5000 stands out as a versatile and space-saving automated test equipment (ATE) platform. With three slots and dual-channel modules, it supports up to six parallel channels, and for larger applications, multiple mainframes can be connected using TSP-Link™ to operate as a single, unified system. Customers can mix and match modules, choosing between cost-effective power supplies or precision SMUs to balance performance and budget while optimising throughput. Its modular design makes it ideal for a wide range of applications, from simple validation tasks to high-volume production testing. By conserving valuable rack space and reducing cost per channel, the MP5000 helps teams accelerate testing without sacrificing accuracy or reliability.

What is the MP5000 Series?

A superior sourcing platform for Test & Measurement.
