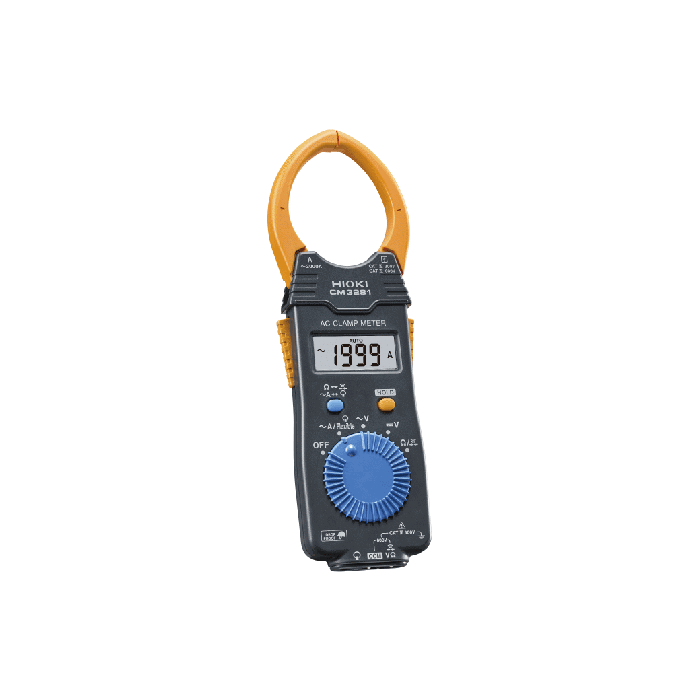

Hioki CM3281 AC Clamp Meter | APC Technology Group

CM3281

CM3281

Hioki

AC Clamp Meter

Large Jaw Lets You Clamp with Ease, ‌Measure thick cables right at the terminal

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The CM3281 is an average rectified 2000 A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.

CAT IV 300 V
CAT III 600 V

Key Features

  • AC only, measure up to 2000 A AC
  • -25°C to 65°C operating temperature range
  • Also measure resistance, continuity, AC and DC voltage
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply Coin type lithium battery (CR2032) ×1, Continuous use 120 hours
Included Accessories Carrying case ×1, TEST LEAD L9208 ×1, Coin type lithium battery CR2032 (for trial purposes only) ×1, Instruction manual ×1, Download guide ×1, Operating precautions ×1
Dimensions and Weight 57 mm (2.24 in) W × 198 mm (7.80 in) H × 16 mm (0.63 in) D, 103 g (3.6 oz)
Other Functions Continuity check: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Core Jaw Diameter φ 46 mm (1.81 in), Jaw dimension: 65 mm (2.56 in) W × 13 mm (0.51 in) D
DC Voltage range 420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. (at 4.2 V range)
AC Voltage range

4.200 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified),
Basic accuracy 45-66 Hz: ±1.8% rdg. ±7 dgt. (at 4.2 V range)

AC Current Range

42.00 to 2000 A, 3 ranges (50 Hz to 60 Hz, Average rectified),
Basic accuracy 50-60 Hz: ±1.5% rdg. ±5 dgt.

More Information
Attribute Value
Data Sheet Click here to view
